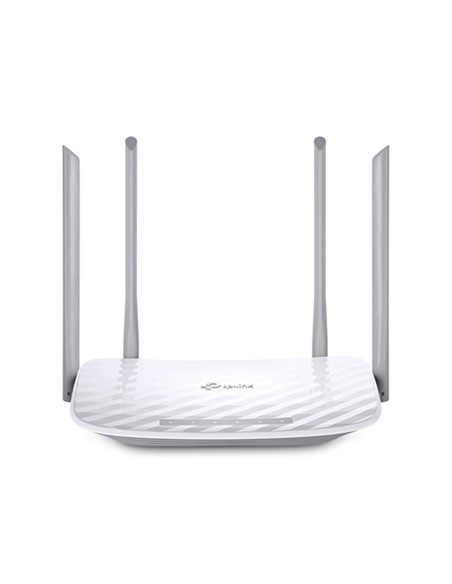

Router Ethernet WiFi TP-Link Archer C50 AC1200 Dual-Band 1200Mbps 2.4GHz &
5GHz
Supporta lo standard 802.11ac - il nuovo standard Wi-Fi
Connessioni simultanee 2.4GHz e 5GHz rispettivamente a 300Mbps e 867Mbps per un
totale di banda totale disponibile fino a 1.2Gbps
4 antenne esterne dual band offrono connessioni wireless stabili e una copertura
ottimale
Facile gestione della rete con TP-LINK Tether
SPECIFICHE TECNICHE:
Interfaccia 4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port
Tasto Reset Button
WPS/Wi-Fi On/Off Button
Power On/Off Button
Alimentatore esterno 9VDC / 0.85A
Dimensioni ( L x P x A ) 9.1 x 5.7 x 1.5 in. (229.87 x 144.19 x 36.85 mm)
Tipo di antenna 4 External Antennas
CARATTERISTICHE WIRELESS
Standard wireless IEEE 802.11n/g/b 2.4GHz
IEEE 802.11ac/n/a 5GHz
Frequenza 2.4GHz and 5GHz
Signal rate 2.4GHz: Up to 300Mbps
5GHz: Up to 867Mbps
Sensibilità di ricezione 5GHz:
11a 54M: -76dBm
11ac VHT20 MCS8: -70dBm
11ac VHT40 MCS9: -65.5dBm
11ac VHT80 MCS9: -61.5dBm
2.4GHz:
11g 54M: -76dBm
11n HT20 MCS7: -74dBm
11n HT40 MCS7: -71d
Potenza di trasmissione CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm
Funzionalità wireless Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless
Statistics
Sicurezza wireless 64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
CARATTERISTICHE SOFTWARE
QoS (Quality of Service) WMM, Bandwidth Control
Tipo WAN Dynamic IP/Static IP/PPPoE/
BigPond/ /L2TP(Dual Access) /PPTP(Dual Access)
Gestione Access Control
Local Management
Remote Management
DHCP Server, Client, DHCP Client List,
Address Reservation
Port forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN pass-through PPTP, L2TP, IPSec
Gestione accessi Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management
Firewall DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocolli Supports IPv4 and IPv6
Rete ospiti 2.4GHz guest network × 1
5GHz guest network × 1
ALTRO
Certificazione CE, FCC, RoHS
Contenuto della confezione AC1200 Wireless Dual Band Router Archer C50
Power supply unit
Ethernet Cable
Quick Installation Guide
Requisiti di sistema Microsoft Windows 98SE, NT, 2000, XP, Vista™ or
Windows 7, Windows 8/8.1/10
MAC OS, NetWare, UNIX or Linux
Ambiente Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
