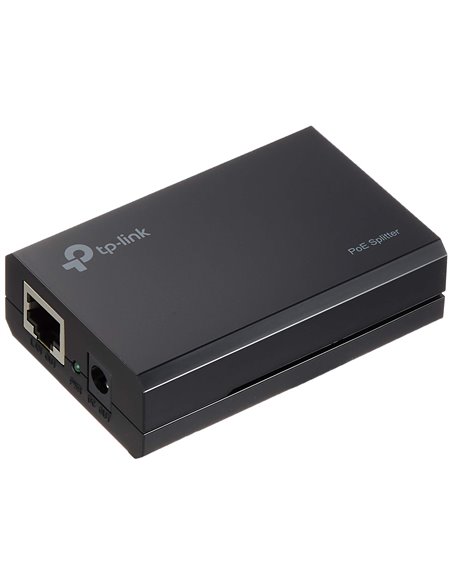

Splitter Gigabit PoE TP-Link TL-POE10R IEEE 802.3af
Splitter Gigabit PoE TP-Link TL-POE10R IEEE 802.3af
Compatibile IEEE 802.3af
Tensione regolabile
Installazione Plug-and-Play
Descrizione
Lo splitter PoE TL-POE10R è pienamente conforme allo standard IEEE 802.3af e può funzionare con tutti i PSE (Power Source Equipment) compatibili POE IEEE 802.3af, altri dispositivi POE, come i TP-LINK TL-SF1008P o TL-POE150S, o altri prodotti equivalenti, fornendo elettricità a 12V, 9V o 5V in luoghi in cui non ci sono linee o prese elettriche, nei quali si desidera collocare dispositivi come AP, IP Camera o telefoni IP, ecc.
CARATTERISTICHE HARDWARE
Interfaccia
2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 POWER OUTPUT PORT
Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Alimentazione
12VDC 1A, 9VDC 1A, 5VDC 2A
Utilizzo principale
Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Output
Indicatore LED
PWR
Dimensioni ( L x P x A )
3.2*2.1*0.9 in.(80.8*54*24 mm)
CARATTERISTICHE SOFTWARE
Funzionalità di base
Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Supply
ALTRO
Certificazione
FCC, CE, RoHS
Contenuto della confezione
PoE Splitter TL-POE10R
Power Cord
RJ45 Cable
Installation Guide
Requisiti di sistema
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Ambiente
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
